XTA - DS800
Valise de presse 8 entrées / 32 sorties; Gain ajustable, alim. 48V.
Informations
- Codart : DS800
Propriétés techniques

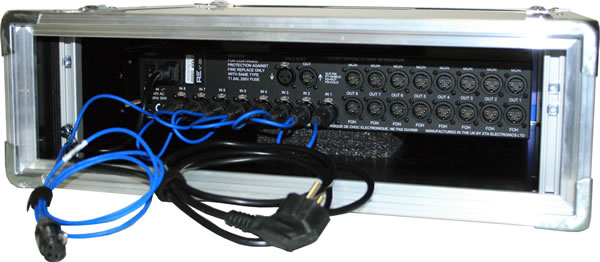

- Dimensions en flight-case (X1) : 58 X 52 17 cm
- Dimensions unitaires : 48 x 31 x 9 cm
- Poids en flight-case (X1) : 18 kg
- Poids unitaire : 8,1 kg
Documents à télécharger
Détails produit
Features
- Self-contained, 8 input 32 output unit with auto switching powersupply, will work down to 60V mains voltage, 50/60Hz, no external power supply needed.

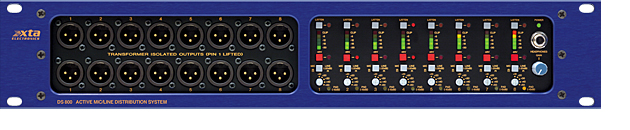

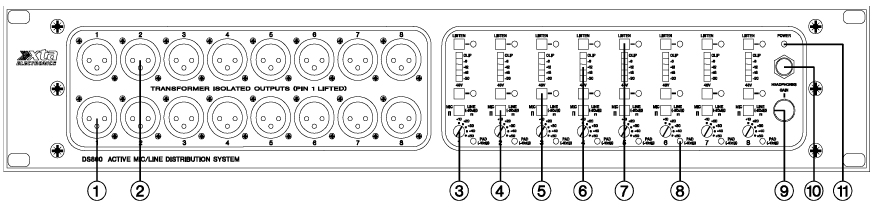

- Ergonomically designed front panel with recessed controls resulting in a ‘cable and connector free’ control area.
- 5 segment LED meters on every input giving instant indication of input levels and or clipping.
- Exceptional dynamic range.
- Headphone ‘listen’ facility, which can be expanded when usingmultiple units.
Inputs
- Inputs 8 electronically balanced. [++]
- Impedance (microphone) 2k ohms.
- Impedance (Line) 10k ohms.
- CMRR >80dB @ 1kHz.
Outputs
- FOH 8 electronically balanced. [++]
- MON 8 electronically balanced. [++]
&nbs
